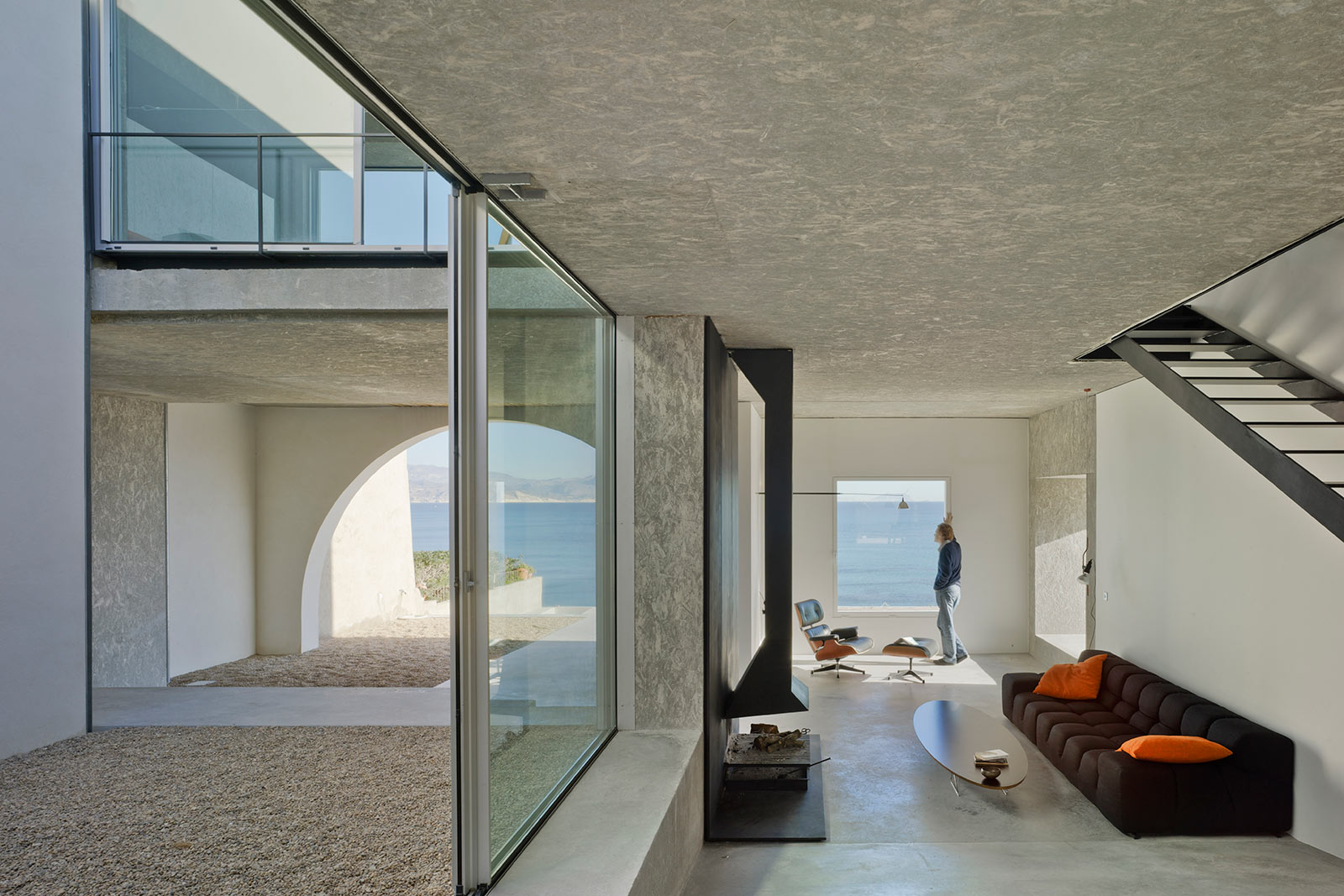

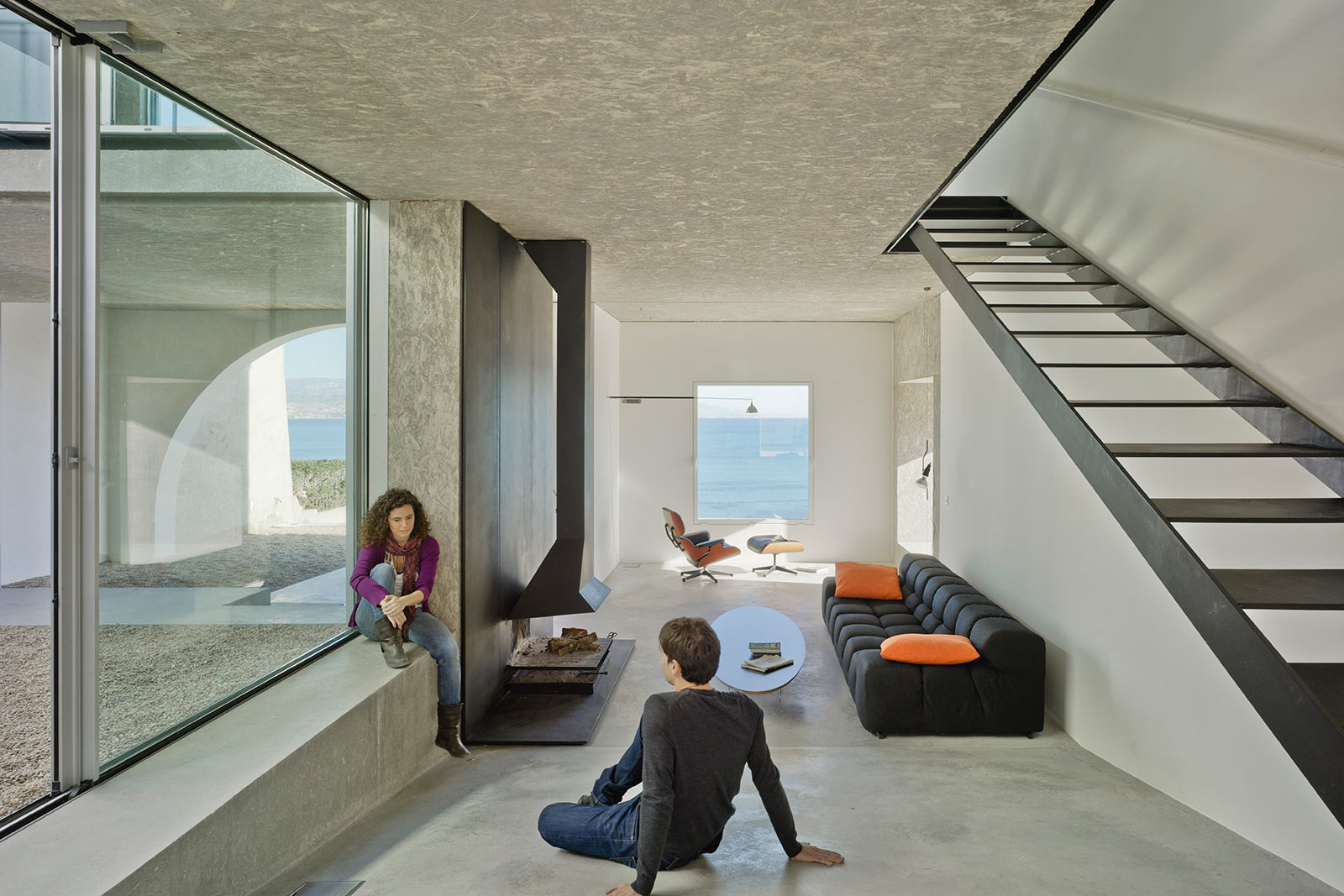

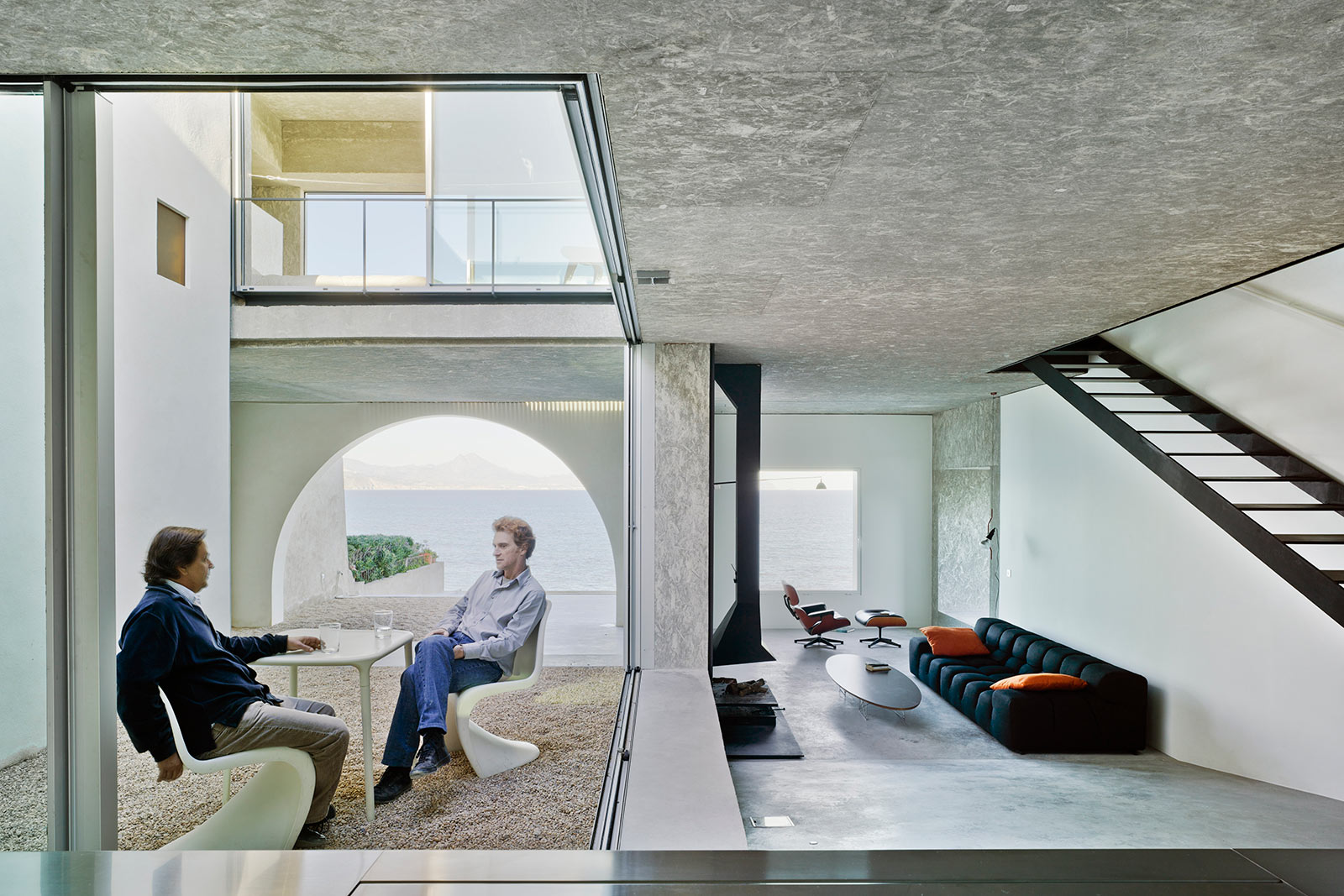

The InfiniGLIDE3 is our minimal sliding door system with ultra-slim 20 mm sightlines for a sleek, modern finish. Perfect for projects where maximising glass, light, and contemporary style is key, without compromising on strength or performance.
InfiniGLIDE 3 is a registered trade mark of Arkay Windows Ltd, registered in the UK under trademark number no: UK00003550177 and UK00003550182.
The InfiniGLIDE3 combines striking minimalism with robust performance. With just 20 mm slim sightlines, the system maximises glass area for a clean, contemporary look, making it ideal for high-end residential and commercial projects. Optional pocket configurations further enhance design flexibility, allowing seamless integration with interior and exterior spaces.
Technically engineered for strength and reliability, InfiniGLIDE3 supports large panels up to 2.5 m wide and 3 m high, maintaining smooth, effortless sliding even at maximum sizes. Its high-performance aluminium frame ensures durability, weather resistance, and long-term structural integrity, while keeping the overall profile slim and elegant.
The InfiniGLIDE3 is available in a wide range of RAL colours and premium finishes, allowing you to tailor the system to any architectural style or project palette. All hardware, including handles and accessories, can be colour-matched to the frame, delivering a fully coordinated, sleek appearance that complements the ultra-slim design.
| THRESHOLD HEIGHT | 44 mm |
| GLAZING THICKNESS | 26-30 mm |
| GLAZING METHOD | Structurally bonded |
| MINIMUM SIGHTLINE | 20 mm |

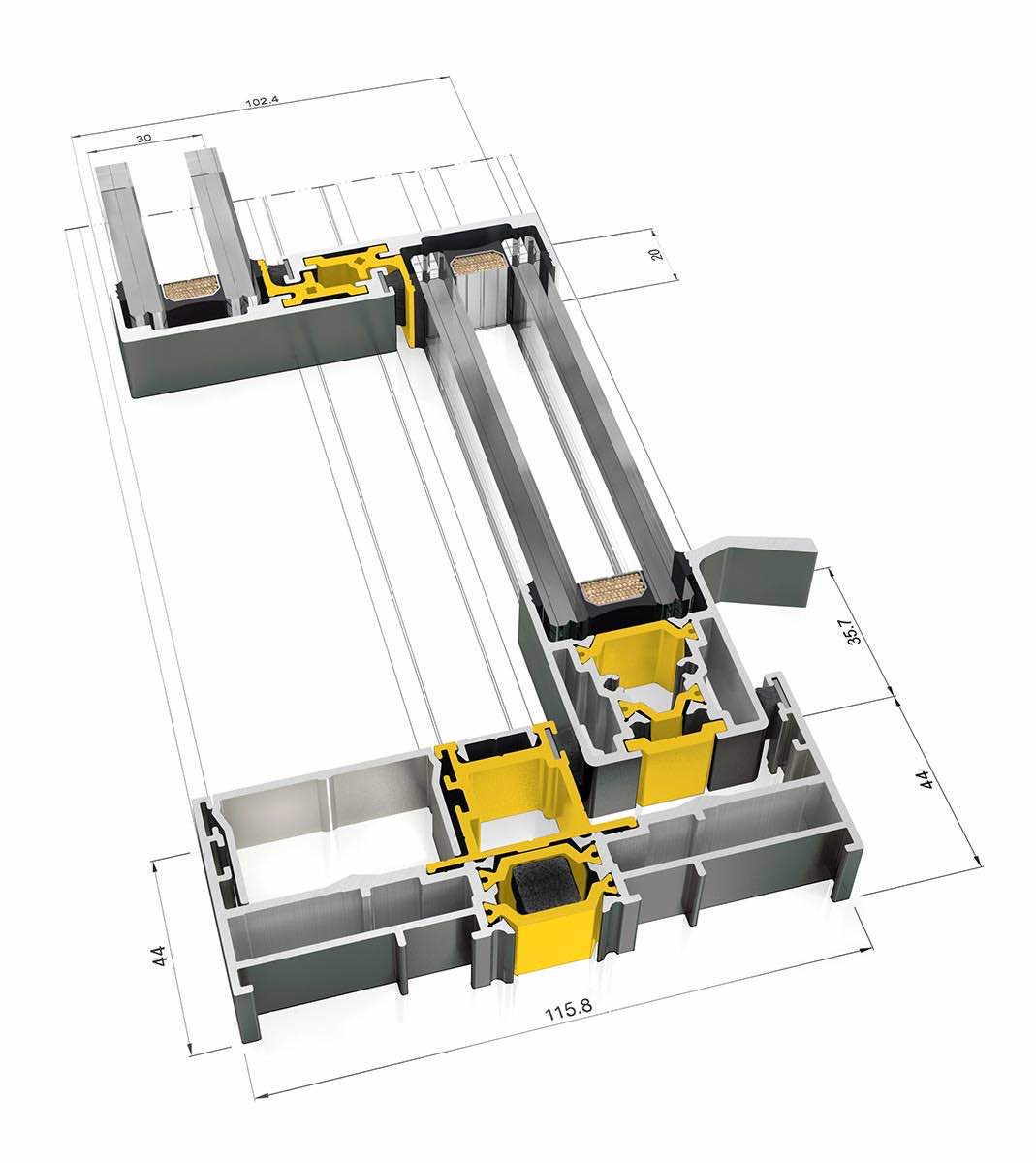

| FRAME DEPTH | Dual track: 116 mm
Triple track: 182 mm |
| MAXIMUM PANEL WIDTH | 2500 mm |
| MAXIMUM PANEL HEIGHT | 3000 mm |
| MAXIMUM PANEL WEIGHT | 320 kg |
| U-VALUE | From 1.3 W/m²K |
| AIR PERMEABILITY | Class 4 |
| WATER TIGHTNESS | Class 7A |
| WIND RESISTANCE | Class C5 |
| MAXIMUM ACOUSTIC INSULATION | 41 dB Rw |
InfiniGLIDE 3® is Arkay’s frameless option, with a 20mm interlock (vs. 35mm on EdgeGLIDE+). It’s designed for the slimmest possible sightlines in high-end architectural projects.
Each panel can be up to 2500mm wide and 3000mm high, with a maximum weight of 320kg.
Yes. The thermally broken system delivers U-values from 1.3 W/m²K, making it compliant with Part L energy regulations.
Absolutely. InfiniGLIDE 3® is designed for flush floor, ceiling, and wall integration, achieving a near frameless architectural look.
As the InfiniGLIDE3 can only support glazed units between 26-30mm, it cannot be triple glazed.
