Choose your design, choose your view. EdgeGLIDE+® is the sleek inline aluminium sliding patio door which combines top quality and colour-matched hardware with an elegant design and strong thermal performance.
EdgeGLIDE+ Sliding Doors
Slim Sightlines. Effortless Operation. Outstanding Performance.
EdgeGLIDE+ Sliding Doors

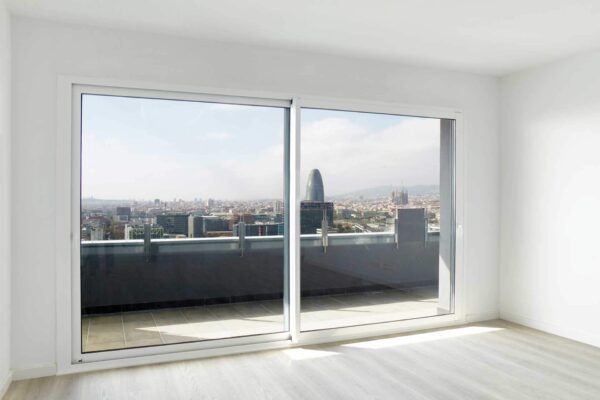

Our market-leading slider with slim 35mm sightlines.
High Performance Inline Sliding Doors
EdgeGLIDE+® is a high-performance aluminium sliding door system with a slim 35mm interlock allowing for large glazing panels that maximise glass area while maintaining structural performance.

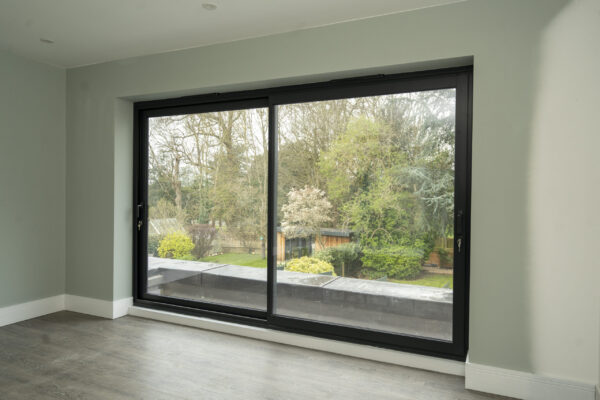

The thermally broken system gives a 1.4 W/m²K with double glazed units, supporting energy-efficient specifications. Colour-matched hardware and a range of powder-coated finishes provide a consistent, project-ready aesthetic.
EdgeGLIDE+ is a registered trade mark of Arkay Windows Ltd, registered in the UK under trademark number no: UK00003550163.
Technical Specification
Specification
| THRESHOLD HEIGHT | 48 mm |
| GLAZING THICKNESS | 24-36 mm |
| GLAZING METHOD | Wrap Around |
| MINIMUM SIGHTLINE | 35 mm |
| FRAME DEPTH | Dual Track: 70mm
Triple Track: 126mm |
Size Limits
| MAXIMUM PANEL WIDTH | 2200 mm |
| MAXIMUM PANEL HEIGHT | 2600 mm |
| MAXIMUM PANEL WEIGHT | 240 kg |
Performance
| U-VALUE | From 1.2 W/m²K |
| AIR PERMEABILITY | Class 4 |
| WATER TIGHTNESS | Class 7A |
| WIND RESISTANCE | Class C5 |
| MAXIMUM ACOUSTIC INSULATION | 40 dB Rw |
FAQ
Can you have fixed panes in this system?
We only offer the option for all panes to be sliding. If your project requires fixed panes, you can select one of our other sliding door systems (GLIDE21 or InfiniGLIDE3) that can accommodate this.
Can EdgeGLIDE+ be triple glazed?
Yes, the EdgeGLIDE+ can be triple glazed up to 36mm units.
What are the maximum door sizes?
Each panel can reach up to 2200mm wide and 2600mm high, with a maximum weight of 240kg per panel.
Are EdgeGLIDE+ doors compliant with UK Building Regulations?
Yes, with U-values from 1.2 W/m²K, the system is Part L compliant for thermal performance.
Can the doors be customised in colour?

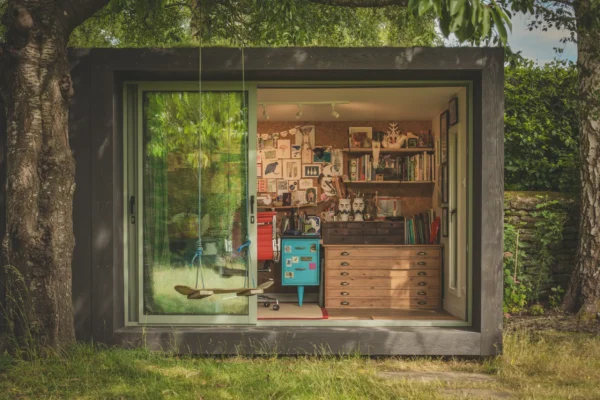

Absolutely. EdgeGLIDE+ is available in single or dual RAL colours, with the option of anodised finishes to suit your project’s design palette.
