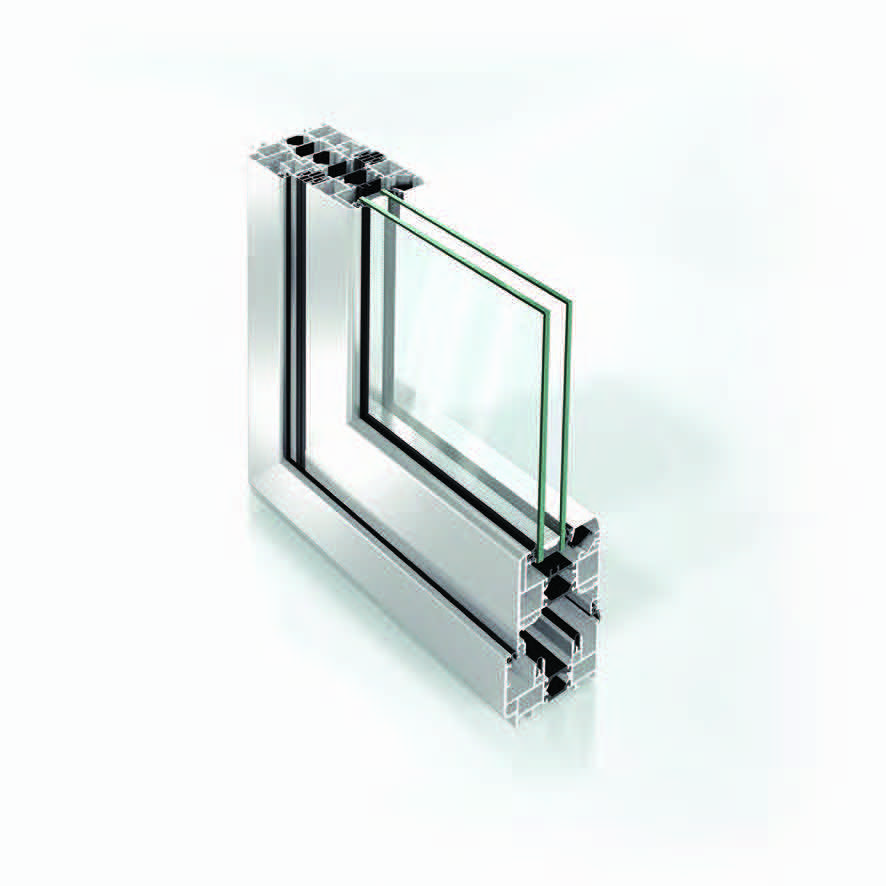

SCHÜCO ASS 70 FD

ELEGANT VIEWS

The bi-fold panes are thermally insulated giving a high level of transparency - different requirements can be met for example the option of a flush threshold profile provides an easy access entrance.

  • Suitable for use in public & residential property
  • Narrow face widths from 120mm
  • Can be used for balcony glazing
  • Glazing thickness 6-45mm
  • Wide choice of colours
SCHÜCO ASS 70 FD
TECHNICAL SPECIFICATION

SPECIFICATION

PROFILE DEPTH 70mm
GLAZING THICKNESS 6mm – 45mm
GLAZING METHOD Beaded
SECURITY PAS 24
MIN SIGHTLINE 120mm

PERFORMANCE

U-VALUE From 1.6 W/m²K
AIR PERMEABILITY  Class 2
WATER TIGHTNESS  Class 9A
WIND RESISTANCE Class C3

SIZE LIMITS

MAXIMUM HEIGHT 3000mm
MAXIMUM WIDTH 1200mm per panel
MAXIMUM WEIGHT 100kg per panel
