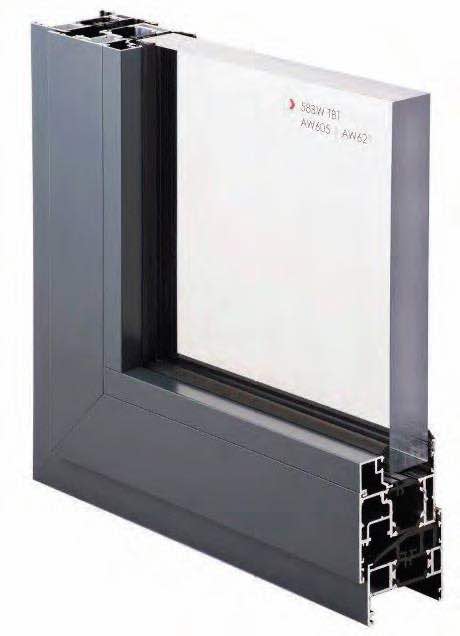

ALUK 58BW

HIGH PERFORMANCE SOLUTION

An effective and high performance solution - offering clean lines and advanced functionality for both new build and residential replacement applications. This window system is available in a range of configurations from Casement, tiltbefore- turn and top-swing-reverse.

  • Certified under the Secured By Design scheme
  • Tested to PAS 24
  • Green guide rated A
  • Integrated deep head profiles for ease of trickle ventilation
  • Unique polamide thermal break design to improve thermal performance
  • 58mm frame depth
  • Project in or project out options
  • Internally or externally glazed to accommodate low and high rise projects
  • Glazing 24mm - 40mm
  • Available in a range of single or dual colour and anodised finishes
  • Available for Lifetime Homes (LFT)
ALUK 58BW
TECHNICAL SPECIFICATION

SPECIFICATION

CASEMENT TBT TSR
FRAME DEPTH 58mm 58mm 58mm
DUAL COLOUR OPTION
MULTI-POINT LOCKING
GLAZIN GOPTION S Internal and External Bead Internal and External Bead Internal Bead
GLAZING THICKNESS 24mm – 40mm 24mm – 40mm 24mm – 28mm
SIGHTLINE (FRAME TO VENT) 75mm 86mm 103mm
SIGHTLINE (VENT TO MULLION) 89mm 100mm 161mm
SIGHTLINE (FIXED LIGHT) 43mm 43mm

PERFORMANCE

PERFORMANCE CASEMENT TBT TSR
U-VALUE (DOUBLE GLAZING) 1.4 W/m²K 1.5 W/m²K 1.7 W/m²K
U-VALUE (TRIPLE GLAZING) 1.2 W/m²K 1.3 W/m²K
WINDOW ENERGY RATIN G B – C B – C
GREEN GUIDE RATIN G A Rated A Rated A Rated
ACOUSTIC PERFORMANCE Rw (C;Ctr) 42 (-1;-5) dB Rw (C;Ctr) 44 (-1;-4) dB
AIR TIGHTNESS Class 4 Class 4 Class 4
WATER TIGHTNESS Class 9A Class 9A Class 9A
WIND LOAD Class E2400 Class E2400 Class A5
SECURITY PAS 24 PAS 24 PAS 24
3RD PARTY CERTIFICATION Q-mark Q-mark Q-mark
SECURED BY DESIGN Yes Yes Yes

SIZE LIMITS

CASEMENT TBT TSR
Top hung (max weight) 180kg
Tilt before turn (max weight) 100kg
Side hung (max weight) 55kg 100kg
Bottom hung (max weight) 60kg
Top swing (max weight) 60kg
Side swing (max weight) 45kg
Fixed light (max weight) 250kg 250kg 250kg
